Set the amount of data loaded and the timing color codes while using the map

??? teamrev26.1 new>The following steps detail how to do this from the map screens, but if you want to do it from Home screen refer to Set the amount of data loaded and the timing color codes.

  1. On the top-right corner of the map screen, tap . The User preferences panel opens.

  2. Tap to select either Load past x hours if you want the amount of past data displayed on the Sentinel maps to be based on the number of hours that you enter, or select Load last x locations if you want the amount of past data displayed on the map to be based on the number of past locations that you enter, then enter the number of hours or number of locations respectively.

    If you select Load last x locations then:

    1. In Limit by, select either any event type or each event type. For example, if you selected to load the last two locations of any event type, then you could only have a maximum of two locations displayed on the Sentinel maps, however if you selected each event type then you could have a maximum of six locations, two Smart Track alerts, two GPS pings and two PRTT events.

  3. In Increment every x hours or Increment every x locations enter the increment value you want used when you tap on the Phones panel.

    This allows you to add more data to the map as detailed in Add more data or remove data from the map screens.

    In the following example this setting is set to 2 hours and when is tapped an additional 2 hours are added to the existing 5 hours meaning 7 hours of data is then displayed.

  4. ??? teamrev26.1 new>In Load next x alerts, enter the increment value you want used when you tap on the Alerts panel and the Alert summary panel.

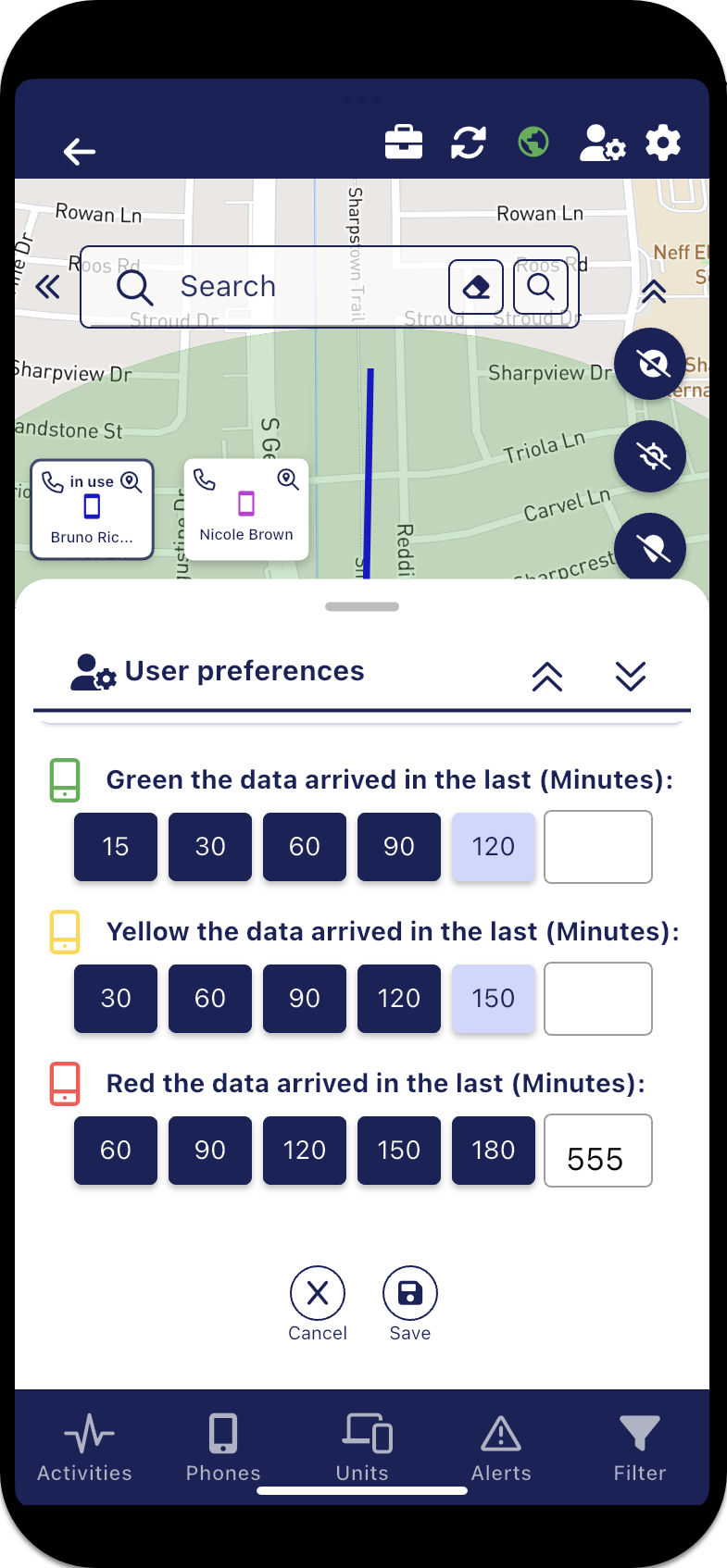

  5. In Green/Yellow/Red the data arrived in the last (Minutes) select the number of minutes for each range. You can choose between predefined minutes for each range, or you can enter a value of your own. The following graphic shows that data that occurred within the last 120 minutes is displayed in green, within the last 120 to 150 minutes is displayed in yellow, and within the last 150 to 180 minutes is displayed in red.
